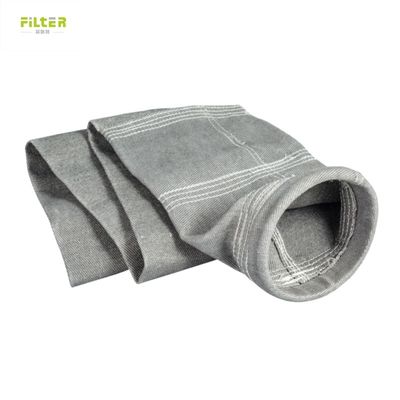

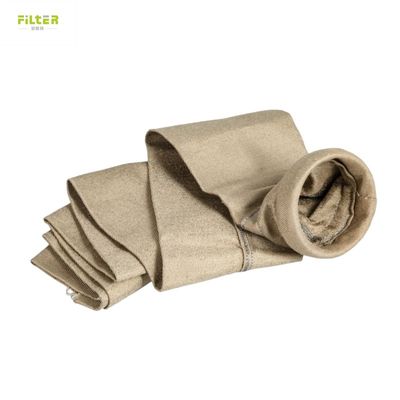

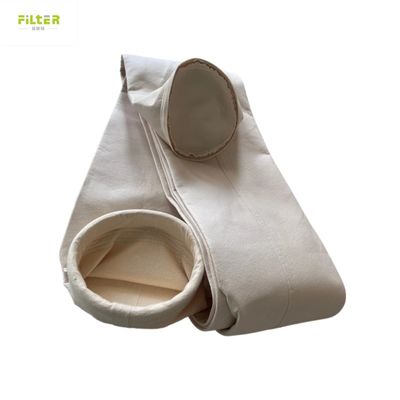

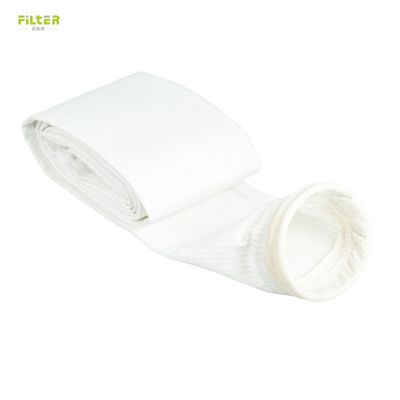

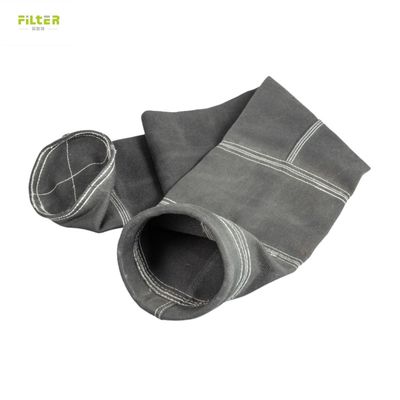

Durable Aramid Polyester PPS Filter Bag for Steel Plant Filtration with High Flow Efficiency:
Description:
Material:Nomex(Aramid) Needle Felt
Weight: 500GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. We make it as your requirements.
Length: 1000mm~8000mm. We make is as your requirements.
Technical Data:
| Fibre |
Aramid |
| Scrim |
Aramid |
| Weight(G/M2) |
500~550 |
| Thickness (mm) |
2.2 |
| Width (mm) |
≤ 2.2 |
| Length |
50m/roll |
| Finish treatment |
Singeing, Calendering, Heat-set,with PTFE membrane,oil&water repellent treatment. |
| Air permeability (L/m2/s): |
120~200 |
| Tensile strength (N/5× 20cm) |
Warp:>1000 Weft:>1200 |
| Tensile elongation (%): |
Warp:<50 Weft:<55 |
| Temperature (ºC): |
Continue: 204 Instant: 240 |
| Anti-acid |
Excellent |
| Anti-alkali |
Excellent |
| Anti-abrasion |
Excellent |
Production Feature:
1.High efficient filtration level.
2.Depth type filtration.
3.Wide range of chemically compatible media.
4.High temperature resistance.
5.High flow efficiency.
6.High air to cloth ratio.
7.Various coatings are available.
Application:
1. Asphalt Industry.
2.Food and Beverage Industry.
3. Pharmaceutical Industry.
4. Non-ferrous Metallurgy.
5. Chemcial Plant.
6. Building Section and Mining Industry.
7. Cement Plant.
8. Power Plant.
9. Steel Plant.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
